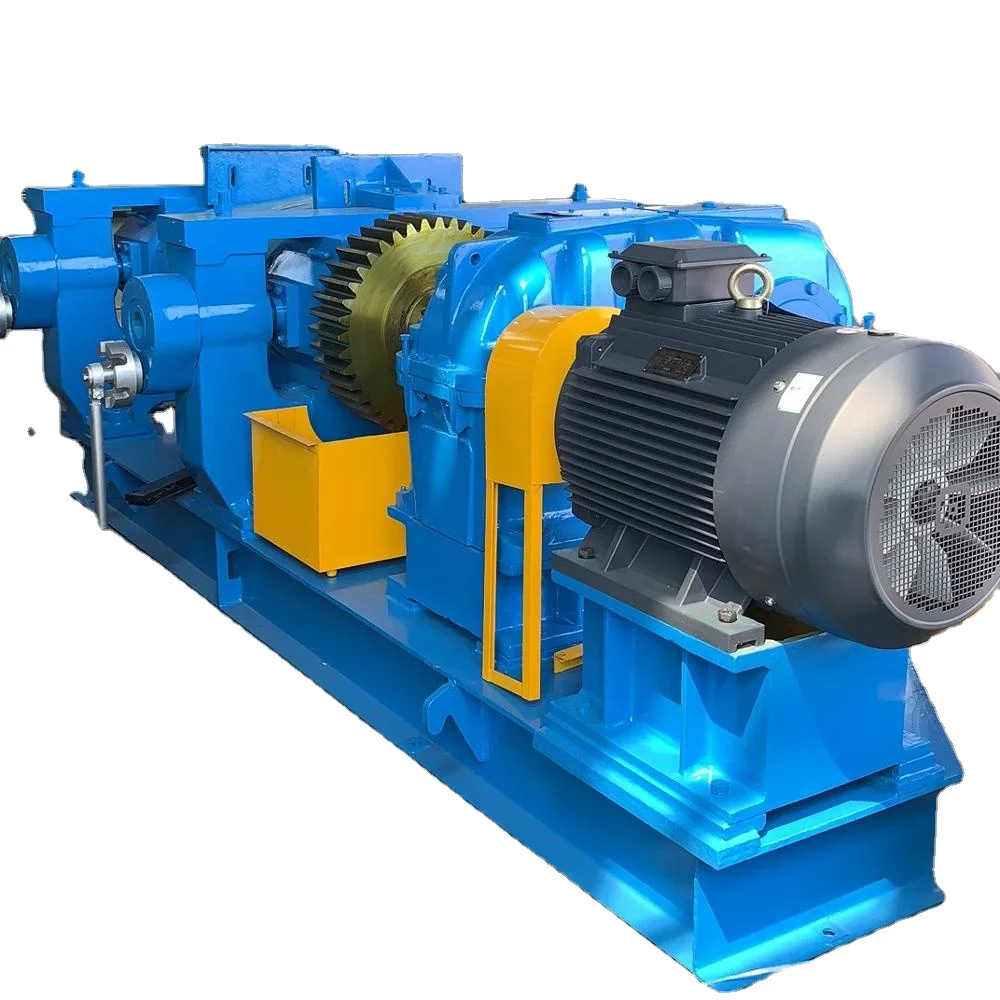

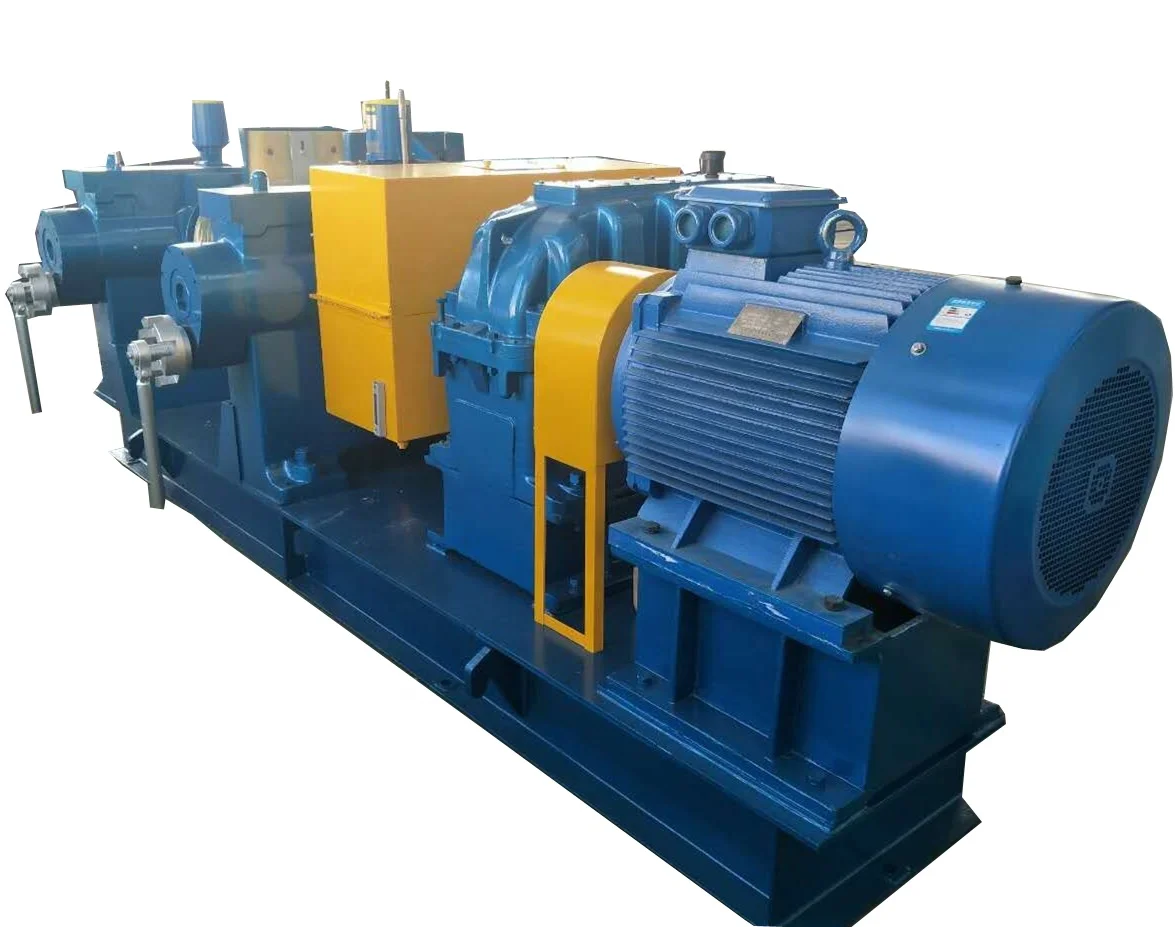

Grease Lubricating Reclaimed Rubber Refiner Mill 32m/Min 75KW

Name: Grease Lubricating Reclaimed Rubber Refiner Mill 32mMin 75KW
Brand: honghesheng
Price: 25000 USD

Wholesale Grease Lubricating Reclaimed Rubber Refiner Mill 32m/Min 75KW from china suppliers

Brand Name : honghesheng

Model Number : XK450

Certification : CE

Place of Origin : CHINA

MOQ : 1 SET

Price : USD25000-6000/SET

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200SETS/MONTH

Packaging Details : wood package /20/40GP/HC

After-sales service provided : Engineers available to service machinery overseas,Field installation,commissioning and training,Video technical support

Type : Open Mixing Mill

Roller hardness : 50~60HRC

Bush : nylon bush,bearing bush,ball bearing Bush

Voltage : 380V,Customer's Request,380V/50HZ,220/380V,AC380V

Power(w) : 37kw,4.5KW,20KW,5KW for lab two roll mill

Weight : 5200kgs,1000kg,2T

Dimension(l*w*h) : 1100*700*1200mm,1226x830x1295mm,1*1.1*1.4(M),1100*650*1500,1160*920 *1370mm

Warranty : 1 Year

Condition : New

Contact Now

**XKJ-480*610 Rubber Refiner Mixing Mill For Reclaimed Rubber Plant**

We can provide you a full set production line equipments for reclaimed rubber production from waste radial tire.Production list:
Tire bead ring cutter / Strip cutter / Lump cutter / Wire separator
Rubber cracker mill
Dynamic devulcanizer / Devulcanizing autoclave
Rubber powder cooling machine.
Rubber strainer
Rubber refiner
Winding machine
Production capacity: 500kgs/per hour or 1000kgs per hour as per your request.
Technical parameter
Technical spec.:
 	 			1.Type 			XKJ-450*800/1000 			XKJ-480*1000
 			2.Diameter of front & rear roller 			450mm/510mm 			480mm/610mm
 			3.Working length of rollers 			800mm / 1000mm 			1000mm
 			4.Roller materials & structure 			Chilled casted iron & smooth roller 			Chilled casted iron & smooth roll
 			5. Rotation speed of front roller 			32m/min;  			30m/min
 			6.Motor power 			55KW / 75KW 			75KW / 90KW / 110KW
 			7.Speed reducer 			Hardened teeth speed reducer 			Hardened teeth speed reducer
 			8. Roller support type: 			bearings 			bearings
 			9. Lubricating type: 			Grease lubricating 			Grease lubricating
 			10.Weight 			10 tons 			16.5 tons
 The rollers are made of chilled cast iron with wear-resistant hard surfaces. The two rollers are smooth ones with bored cavities and can be cooled homogeneously. The protective device is provided to protect the main parts from damage due to overload. In case of emergency, the safety rod is pulled down and the rollers will be stopped immediately.
Besides providing a full line equipment, we can also provide you with a full set of technical support

Company Information


Features

Grease Lubricating Reclaimed Rubber Refiner Mill 32m/Min 75KW

Motor&Electrical Components:

1. Motor&Electrical Components equiped with "SIEMENS" "MITSUBSHI" "CHINT",etc.

2. Imported PLC auto control,Safe, Seliable,Stable.

3. Patented design,energy conservation.

Rolls(Made by Dalian Bao Feng):

1. Made of chilled cast iron with vanadium and titanum alloys;.

2. Working surface Hardness:HS72±2

3. Rolls temperature and time control system:Imported PLC auto control system.

Transmission System:

1. Hardened tooth-surface reducer, Compact structure.

2. Higher transmission efficiency.
3. Lower noise,Longer Service Life.

Humane Safety Design(Passed CE Safty certification):

1. Protective cover prevent operator's hands from rolling into the roll.

2. Equipped with emergency device,provide safe and reliable emergency stop.

3. Equipped with an overload protection device to prevent the major components from being damaged due to overloading..

Grease Lubricating Reclaimed Rubber Refiner Mill 32m/Min 75KW
